ANT1575-1820F

Symbol Micros: RF ANT1575-1820f

276003

RF ANT1575-1820f

Contractor Symbol:

Case : Rys.ANT1575-1820F

Datasheet

Technical drawing Add to favourites

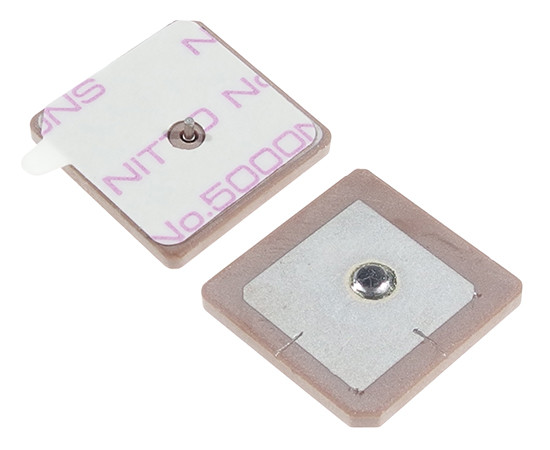

GPS Antenna, 1575.42MHz, BW 4.5MHz, dimensions 18×18×2mm, adhesive mount

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	18x18x2mm
Frequency range:	1575,42MHz
Peak gain:	1,55dBi
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square
Mounting:	Adhesive

All parameters

Manufacturer:: import Manufacturer part number: ANT1575-1820F RoHS Case style: Rys.ANT1575-1820F

In stock:

49 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,1261	0,8597	0,7114	0,6233	0,5932

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	18x18x2mm
Frequency range:	1575,42MHz
Peak gain:	1,55dBi
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square
Mounting:	Adhesive
Polarisation:	RHCP
Impedance:	50Ohm

Detailed description

Typ produktu: Antena GPS

Częstotliwość: 1577.5±2.5MHz
Pasmo -10dB (min): 4.5MHz
Wymiary zewnętrzne: 18×18×2mm
Montaż: przyklejany
Polaryzacja: RHCP
V.S.W.R (max): 1.5
Impedancja: 50Ω
