DA16200MOD-AAC4WA32

Symbol Micros: RF DA16200MOD-aac4wa32

318863

RF DA16200MOD-aac4wa32

Contractor Symbol:

Case : Rys.DA16200MOD-AAC

Datasheet

Technical drawing Add to favourites

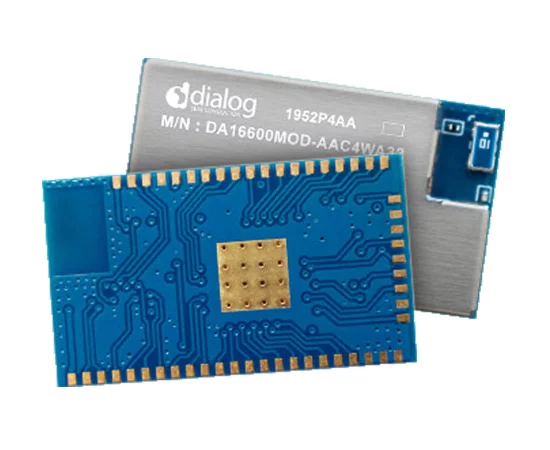

Wi-Fi Module 802.11bgn based on the DA16200 chip, 3UART/SPI/PWM/I2C/GPIO, on-board chip antenna 2.1÷3.6V, 200/29mA, -40÷85°C, dimensions 22.1×13.8×3.3mm, SMT 37-pad package

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	22,1x13,8x3,3mm
Interface:	GPIO/I2C/I2S/JTAG/SDIO/SPI/UART
RAM memory:	512kB
Supply voltage:	2,1V~3,6V
Operating temperature (range):	-40°C ~ 85°C
FLASH memory:	256kB
Transmission speed:	54Mbps

All parameters

Manufacturer:: Dialog Semiconductor Manufacturer part number: DA16200MOD-AAC4WA32 RoHS Case style: Rys.DA16200MOD-AAC Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	19,3061	17,4082	16,0246	14,7562	14,0914

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	22,1x13,8x3,3mm
Interface:	GPIO/I2C/I2S/JTAG/SDIO/SPI/UART
RAM memory:	512kB
Supply voltage:	2,1V~3,6V
Operating temperature (range):	-40°C ~ 85°C
FLASH memory:	256kB
Transmission speed:	54Mbps
Antenna:	None
Communication protocol:	802.11 b/g/n
Frequency:	2,4GHz
Mounting:	SMD
