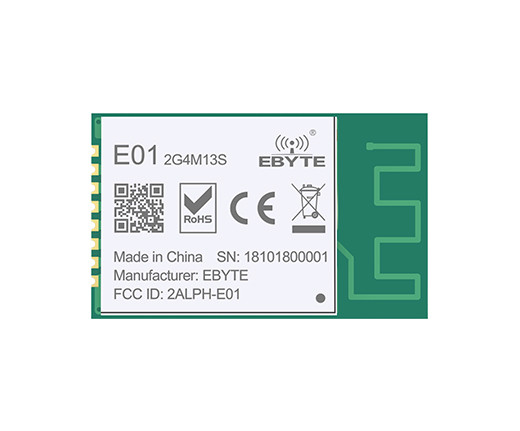

E01-2G4M13S EBYTE

Symbol Micros: RF E01-2G4M13S

364178

RF E01-2G4M13S

Contractor Symbol:

Case : Rys.EB-23x14x2.3

Datasheet

Technical drawing Add to favourites

Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; PCB antenna; Tx 13dBm; Si -98dBm; 800m; 2V~3,6V; -40°C ~ 85°C; 23x14x2,3mm; SMT 8-pad package;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	23x14x2,3mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-98dBm
Transmission speed:	2Mbps
Interface:	SPI
Frequency:	2,525GHz
Modulation:	GFSK

All parameters

Manufacturer:: EBYTE Manufacturer part number: E01-2G4M13S RoHS Case style: Rys.EB-23x14x2.3 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,9535	3,5160	3,2512	3,1200	3,0417

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	23x14x2,3mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-98dBm
Transmission speed:	2Mbps
Interface:	SPI
Frequency:	2,525GHz
Modulation:	GFSK
Transmitter output power:	13dBm
Operating temperature (range):	-40°C ~ 85°C
Type:	Radio module
Antenna:	PCB Antenna
Mounting:	SMD
