E01-2G4M27D EBYTE

Symbol Micros: RF E01-2G4M27D

364179

RF E01-2G4M27D

Contractor Symbol:

Case : Rys.EB-33.4x18x12.8

Datasheet

Technical drawing Add to favourites

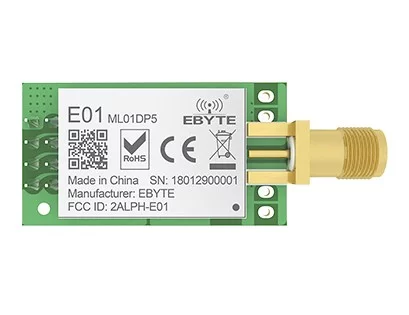

Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; SMA connector; Tx 27dBm; Si -99dBm; 5km; 2,5V~5,5V; -40°C ~ 85°C; 33,4x18x12,8mm; Pin header 2x4;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	33,4x18x12,8mm
Supply voltage:	2,5V ~ 5,5V
Receiver sensivity:	-99dBm
Transmission speed:	2Mbps
Interface:	SPI
Frequency:	2,525GHz
Modulation:	GFSK

All parameters

Manufacturer:: EBYTE Manufacturer part number: E01-2G4M27D CE/RoHS Case style: Rys.EB-33.4x18x12.8 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	25+	50+	100+
Net price (EUR)	5,5238	4,9551	4,7041	4,6443	4,6028

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	33,4x18x12,8mm
Supply voltage:	2,5V ~ 5,5V
Receiver sensivity:	-99dBm
Transmission speed:	2Mbps
Interface:	SPI
Frequency:	2,525GHz
Modulation:	GFSK
Transmitter output power:	27dBm
Operating temperature (range):	-40°C ~ 85°C
Type:	Radio module
Antenna:	Zewnętrzna (Złącze SMA)
Mounting:	THT
