E01-ML01SP2 EBYTE

Symbol Micros: RF E01-ML01SP2

295768

RF E01-ML01SP2

Contractor Symbol:

Case : Rys.EB-25x12.8x2.1

Datasheet

Technical drawing Add to favourites

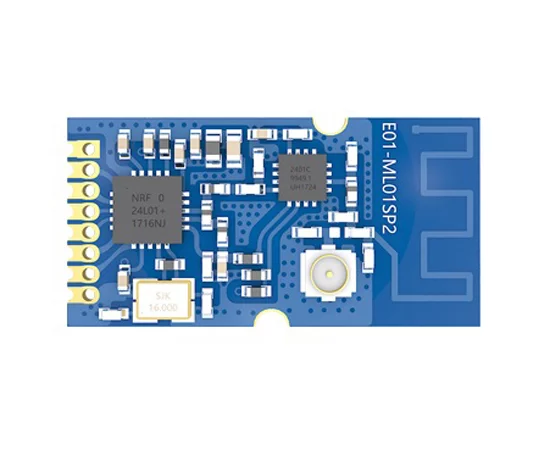

Wireless module based on the Nordic nRF24L01P; 2,4GHz~2,525GHz; SPI; PCB/I-PEX antenna; Po 20dBm; Si -96dBm; 1,5km; 2V~3,6V; -40°C ~ 85°C; 25x12,8x2,1mm; SMT 8-pad package;

Parameters

Dimensions:	25x12,8x2,1mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-96dBm
Interface:	SPI
Transmission speed:	2Mbps
Frequency:	2,525GHz
Modulation:	GFSK

All parameters

Manufacturer:: EBYTE Manufacturer part number: E01-ML01SP2 CE/RoHS Case style: Rys.EB-25x12.8x2.1 Datasheet

In stock:

3 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	5,0083	4,4531	4,1181	3,9530	3,8525

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: EBYTE Manufacturer part number: E01-ML01SP2 CE/RoHS Case style: Rys.EB-25x12.8x2.1 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,8958	4,3526	4,0272	3,8645	3,7664

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	25x12,8x2,1mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-96dBm
Interface:	SPI
Transmission speed:	2Mbps
Frequency:	2,525GHz
Modulation:	GFSK
Transmitter output power:	20dBm
Type:	Radio module
Operating temperature (range):	-40°C ~ 85°C
Antenna:	PCB/IPEX
Mounting:	SMD
