E01-ML01SP4 EBYTE

Symbol Micros: RF E01-ML01SP4

171724

RF E01-ML01SP4

Contractor Symbol:

Case : Rys.EB-18x14.5x2.4

Datasheet

Technical drawing Add to favourites

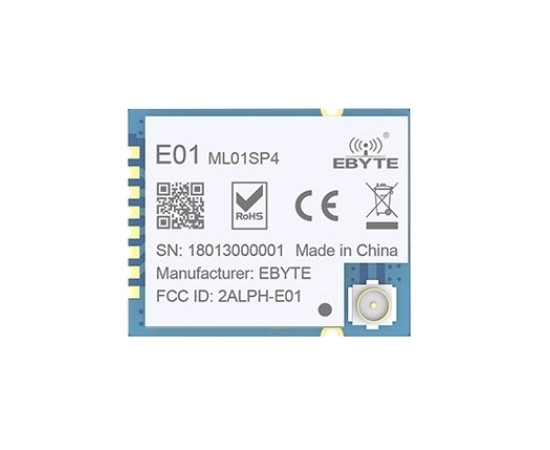

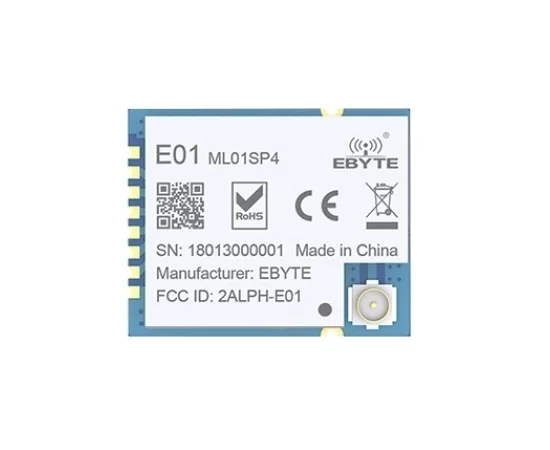

Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; I-PEX connector; Po 20dBm; Si -96dBm; 2km; 2V~3,6V; -40°C ~ 85°C; 18x14,5x2,4mm; SMT 8-pad package;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	18x14,5x2,4mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-96dBm
Transmission speed:	2Mbps
Interface:	SPI
Frequency:	2,525GHz
Modulation:	GFSK

All parameters

Manufacturer:: EBYTE Manufacturer part number: E01-ML01SP4 CE/RoHS Case style: Rys.EB-18x14.5x2.4 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,4392	3,0574	2,8273	2,7146	2,6456

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	18x14,5x2,4mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-96dBm
Transmission speed:	2Mbps
Interface:	SPI
Frequency:	2,525GHz
Modulation:	GFSK
Transmitter output power:	20dBm
Operating temperature (range):	-40°C ~ 85°C
Type:	Radio module
Antenna:	External (I-PEX Connector
Mounting:	SMD
