E104-BT02 EBYTE

Symbol Micros: RF E104-BT02

171732

RF E104-BT02

Contractor Symbol:

Case : Rys.EB-21.9x14.6x2.3

Datasheet

Technical drawing Add to favourites

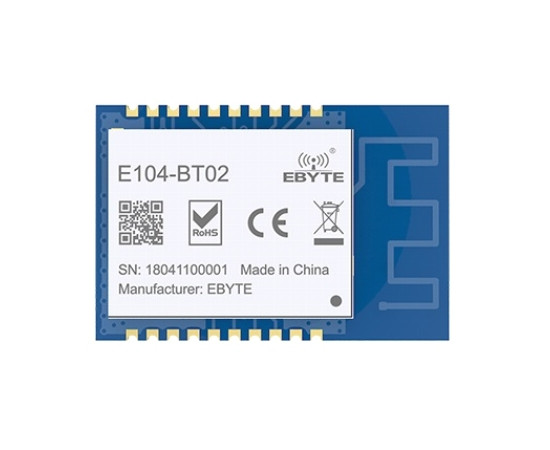

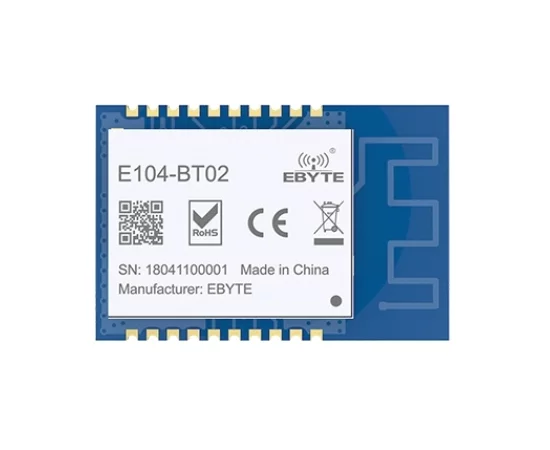

Bluetooth LE 4.2 module based on the Dialog DA14580 IC; PCB antenna; 2379MHz~2496MHz; Po 0dBm; Si -93dBm; 70m; 2,35V~3,3V; -40°C ~ 85°C, 21,9x14,6x2,3mm;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	21,9x14,6x2,3mm
Interface:	UART
Supply voltage:	2,35V~3,3V
Receiver sensivity:	-93dBm
Manufacturer:	EBYTE
Version:	Bluetooth 4.2 low energy
Transmitter output power:	0dBm

All parameters

Manufacturer:: EBYTE Manufacturer part number: E104-BT02 CE/RoHS Case style: Rys.EB-21.9x14.6x2.3 Datasheet

In stock:

3 pcs.

Quantity of pcs.	1+	5+	20+	50+	200+
Net price (EUR)	5,0315	4,3268	4,0520	3,9533	3,8711

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	21,9x14,6x2,3mm
Interface:	UART
Supply voltage:	2,35V~3,3V
Receiver sensivity:	-93dBm
Manufacturer:	EBYTE
Version:	Bluetooth 4.2 low energy
Transmitter output power:	0dBm
Operating temperature (range):	-40°C ~ 85°C
FLASH memory:	0B
Antenna:	PCB
Mounting:	SMT
