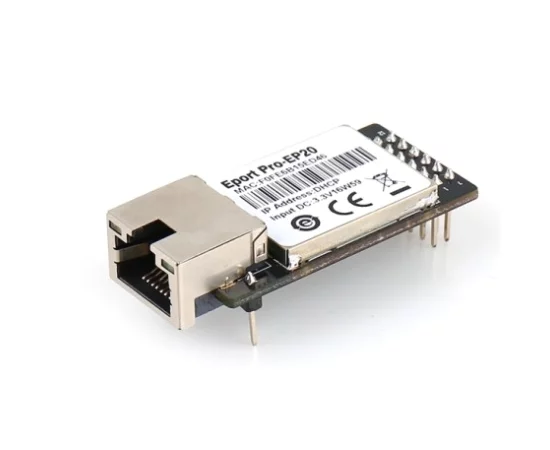

EPORT PRO-EP20
| Operating system: | Linux |
| Processor/frequency: | MIPS/320MHz |
| Ethernet port: | 1 RJ45 + LED |
| Serial port: | 1 + 1 debug |
| Supply voltage: | 3,3V |
| Type: | TTL @ ETHERNET |
| Quantity of pcs. | 1+ | 3+ | 10+ | 20+ | 50+ |
|---|---|---|---|---|---|
| Net price (EUR) | 11,6677 | 11,0682 | 10,6846 | 10,5455 | 10,4184 |
| Operating system: | Linux |
| Processor/frequency: | MIPS/320MHz |
| Ethernet port: | 1 RJ45 + LED |
| Serial port: | 1 + 1 debug |
| Supply voltage: | 3,3V |
| Type: | TTL @ ETHERNET |
VERY EFFICIENT, STANDALONE NETWORK MODULE
Eport RJ45 is a network module for a serial port, whose function is to perform bidirectional, transparent transmission between TTL and Ethernet.
SYSTEM INFORMATION
Processor/Clock Speed: MIPS/320MHz
Flash/SDRAM: 16MB/32MB
Operating System: LINUX
ETHERNET PORT
Number of Ports: 1 RJ45 with LED
Interface Standard: 10/100 Base-T Auto-Negotiation
Protection: 2 kV Isolation
Network Protocols: IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP, TFTP, uPNP, NTP, SNMP, Modbus TCP
Security Protocols: SSL v3 (2048) • AES 128bit, 3DES • SHA-1, MD5, Base-64, RSA, ECC
IPv6 Support: Yes
SERIAL PORT
Number of Ports: 1 + 1 debug
Interface Standard: TTL: 2 wires (TX, RX)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 2
Parity: None, Even, Odd, Space, Mark
Transmission Speed: TTL: 600 bps ~ 460800 bps
Flow Control:
No Flow Control
Hardware: RTS/CTS, DSR/DTR
Software: Xon/Xoff Flow Control
SOFTWARE
Web Pages:
Configuration via web http
Customizing HTML web pages
Interactive web pages
Log: Remote real-time log
Configuration:
Web
CLI
XML import
Telnet
IOTService PC Software
SDK for Developers: No
BASIC PARAMETERS
Dimensions: 50 x 23 x 11 (mm)
Operating Temperature: -45 ~ 70°C
Storage Temperature: -45 ~ 105°C, 5 ~ 95% RH (non-condensing)
Supply Voltage: 3.3V
Current Consumption: ~200mA
Power: <0.7W
ADDITIONAL INFORMATION
Certifications: CE, FCC, RoHS
