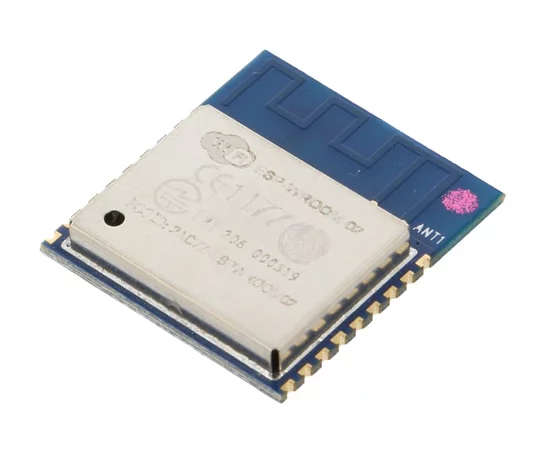

ESP8266 ESP-WROOM-02
Symbol Micros:
RF ESP8266 ESP-WROOM-02
Case : Rys.ESP-WROOM-02
WiFi module; 802.11 b/g/n; 2MB-FLASH; 50kB-RAM; 2.4GHz; 72,2Mbps; 3V~3,6V; UART/SPI/I2C/I2S/GPIO/IRDA/PWM; 18x20x3mm; -40°C ~ 85°C;
Parameters
| Dimensions: | 18x20x3mm |
| Interface: | UART/SPI/I2C/I2S/IRDA/PWM/GPIO |
| RAM memory: | 50kB |
| Supply voltage: | 3V~3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Communication protocol: | 802.11 b/g/n |
| FLASH memory: | 2MB |
Manufacturer:: ESPRESSIF
Manufacturer part number: ESP-WROOM-02-N2
Case style: Rys.ESP-WROOM-02
External warehouse:
906 pcs.
| Quantity of pcs. | 1+ (Need a significantly larger quantity? Ask for price). |
|---|---|
| Net price (EUR) | 2,3350 |
| Dimensions: | 18x20x3mm |
| Interface: | UART/SPI/I2C/I2S/IRDA/PWM/GPIO |
| RAM memory: | 50kB |
| Supply voltage: | 3V~3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Communication protocol: | 802.11 b/g/n |
| FLASH memory: | 2MB |
| Transmission speed: | 72,2Mbps |
| Antenna: | Built-In |
| Frequency: | 2,4GHz |
| Mounting: | SMD |
Detailed description
ESP-WROOM-02 is a low-cost and fully functional WiFi module based on the ESP8266 chip provided by the chip manufacturer – ESPRESSIF. It operates in the 802.11 b/g/n standard on the 2.4 GHz frequency. It is equipped with an internal antenna. It has 18 pins in a 2 mm pitch:
-
9 × GPIO,
-
1 × ADC,
-
1 × UART bus,
The module also features a protective screen covering the chip. The external dimensions of the ESP-WROOM-02 are 18 × 20 mm. The module supports WPA / WPA2 security protocols and can operate in AP (Access Point), STA (standalone), and AP+STA modes. The ESP-WROOM-02 is dedicated to SMD mounting. Thanks to AT COMMAND support, the microprocessor is easily configurable.
