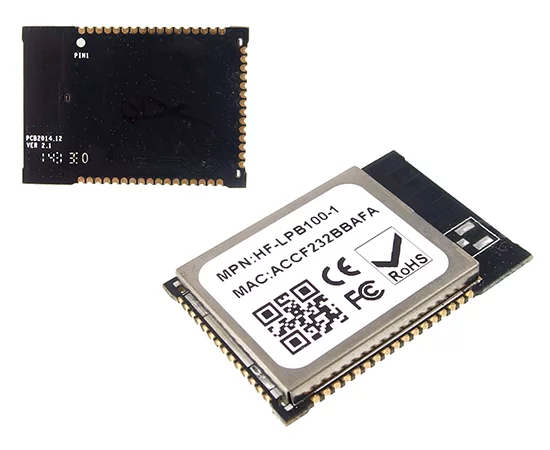

HF-LPB100-1
Symbol Micros:
RF HF-LPB100-1
Case : Rys.HF-LPB-0
Wi-Fi Module 2.4G 802.11bgn, UART/SPI/5PWM/GPIO, on-board PCB antenna 2.8÷3.6V, 12÷200mA, -40÷85°C, dimensions 23.1×32.8×2.7mm, SMT48 package
Parameters
| Dimensions: | 23,1x32,8x2,7mm |
| Interface: | UART/SPI/5PWM/GPIO |
| RAM memory: | 0B |
| Supply voltage: | 2,8V~3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Communication protocol: | 802.11 b/g/n |
| FLASH memory: | 0B |
| Dimensions: | 23,1x32,8x2,7mm |
| Interface: | UART/SPI/5PWM/GPIO |
| RAM memory: | 0B |
| Supply voltage: | 2,8V~3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Communication protocol: | 802.11 b/g/n |
| FLASH memory: | 0B |
| Transmission speed: | 54Mbps |
| Antenna: | PCB |
| Frequency: | 2,4GHz |
| Mounting: | SMD |
Detailed description
Product type: Wi-Fi Module 2.4GHz 802.11bgn
Interfaces: UART/SPI/5PWM/GPIO
Antenna: Integrated printed on PCB
Supply voltage: 2.8÷3.6V
Current consumption: 12÷200mA
Operating temperature: -40÷85°C
Dimensions: 23.1×32.8×2.7mm
Package: SMT48
