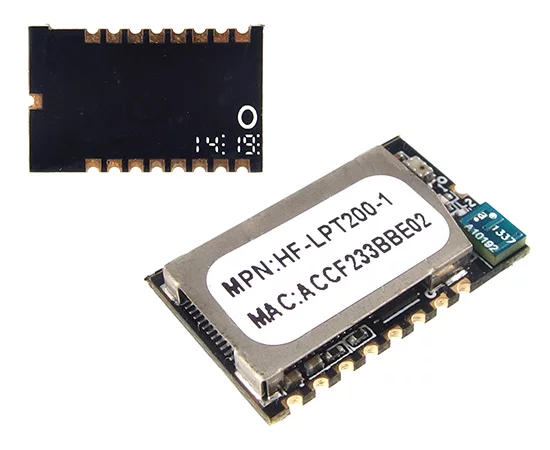

HF-LPT200-1

Symbol Micros: RF HF-LPT200-1

90538

RF HF-LPT200-1

Contractor Symbol:

Case : Rys.HF-LPT200

Datasheet

Technical drawing Add to favourites

Wi-Fi Module 2.4G 802.11bgn, UART/SPI/GPIO, on-board chip antenna 2.8÷3.6V, 12÷200mA, -40÷85°C, dimensions 22×13.5×3mm, SMT17 package

Product description

Parameters

Dimensions:	22x13,5x3mm
Interface:	UART/SPI/GPIO
Supply voltage:	2,8V~3,6V
Operating temperature (range):	-40°C ~ 85°C
Communication protocol:	802.11 b/g/n
Transmission speed:	54Mbps
Antenna:	Built-In

All parameters

Manufacturer:: HIGH-FLYING Manufacturer part number: HF-LPT200-1 RoHS Case style: Rys.HF-LPT200 Datasheet

In stock:

3 pcs.

Quantity of pcs.	1+	5+	10+	20+	50+
Net price (EUR)	10,3766	9,6738	9,5017	9,3791	9,2659

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

Manufacturer:: HIGH-FLYING Manufacturer part number: HF-LPT200-1 RoHS Case style: Rys.HF-LPT200 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	5+	10+	20+
Net price (EUR)	10,3625	9,9521	9,5819	9,3885	9,2517

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	22x13,5x3mm
Interface:	UART/SPI/GPIO
Supply voltage:	2,8V~3,6V
Operating temperature (range):	-40°C ~ 85°C
Communication protocol:	802.11 b/g/n
Transmission speed:	54Mbps
Antenna:	Built-In
Frequency:	2,4GHz
Mounting:	SMD

Detailed description

Product type: Wi-Fi Module 2.4GHz 802.11bgn

Interfaces: UART/SPI/GPIO
Antenna: Integrated chip antenna
Supply voltage: 2.8÷3.6V
Current consumption: 12÷200mA
Operating temperature: -40÷85°C
Dimensions: 22×13.5×3mm
Package: SMT17
