JWX6058 JJPLUS

Symbol Micros: RF JWX6058

289336

RF JWX6058

Contractor Symbol:

Case : Rys.JWX6058

Datasheet

Technical drawing Add to favourites

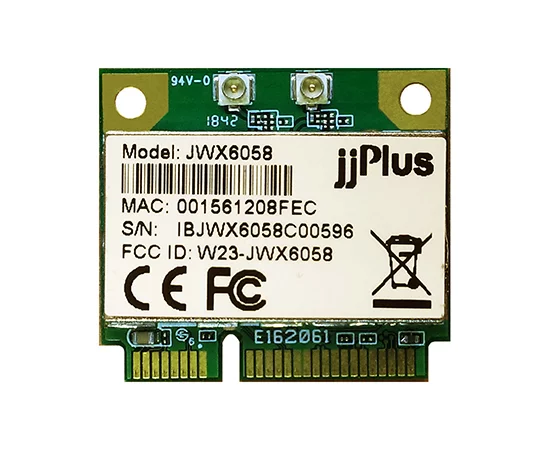

Wi-Fi 802.11ac/abgn + Bluetooth 4.2 Module, external antenna (2x I-PEX conn.) 3.3V, 806/205mA, -40÷85°C, dimensions 30×26.8×2.8mm, Mini PCIe connector

Parameters

Dimensions:	30x26,8x2,8mm
Interface:	USB
Supply voltage:	3,3V
Operating temperature (range):	-40°C ~ 85°C
Transmission speed:	54Mbps
Antenna:	IPEX
Communication protocol:	802.11 b/g/n

All parameters

Manufacturer:: JJPLUS Manufacturer part number: JWX6058 CE/RoHS Case style: Rys.JWX6058 Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	32,2743	31,5310	30,9795	30,4520	30,1642

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	30x26,8x2,8mm
Interface:	USB
Supply voltage:	3,3V
Operating temperature (range):	-40°C ~ 85°C
Transmission speed:	54Mbps
Antenna:	IPEX
Communication protocol:	802.11 b/g/n
Frequency:	2,4GHz
Mounting:	SMD
