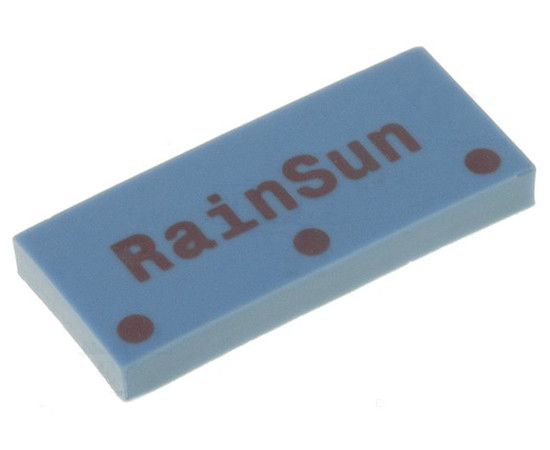

MD1506 Chip Antenna Rainsun

Symbol Micros: RF MD1506

97537

RF MD1506

Contractor Symbol:

Case : RF MD1506

Datasheet

Add to favourites

Chip Antenna GSM; 820~1950MHz; SMD 14,7x6,5x1,6mm; -0,3dBi; 50Ohm; 5W; -40°C~85°C; GSM-ANT-MD1506;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	14.7x6.5x1.6mm
Frequency range:	820 ~ 1950MHz
Peak gain:	-0,3dBi
Manufacturer:	RainSun
Antenna type:	GSM
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Rectangle

All parameters

Manufacturer:: Rain Sun Manufacturer part number: MD1506 RoHS Case style: RF MD1506

In stock:

4 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,6356	1,2124	1,0605	0,9846	0,9616

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: RainSun Manufacturer part number: MD1506 RoHS Case style: RF MD1506 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,5643	1,0950	0,9317	0,8512	0,8236

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	14.7x6.5x1.6mm
Frequency range:	820 ~ 1950MHz
Peak gain:	-0,3dBi
Manufacturer:	RainSun
Antenna type:	GSM
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Rectangle
Mounting:	SMD
Polarisation:	Linear
Impedance:	50Ohm
