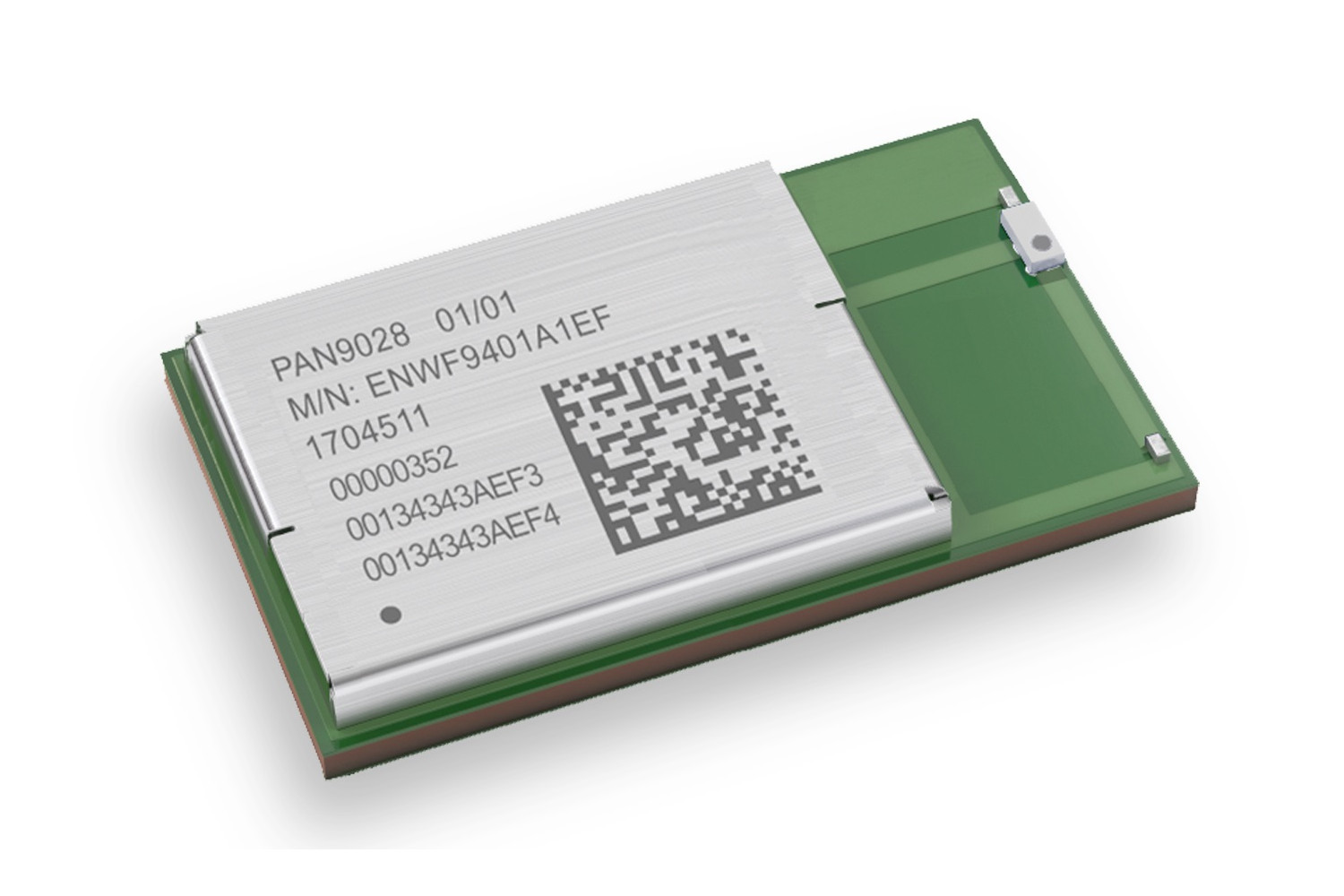

PAN9028 (ENW-F9408A1EF)

Symbol Micros: RF PAN9028-PMIC

500157

RF PAN9028-PMIC

Contractor Symbol:

Case : Rys.PAN9028

Datasheet

Technical drawing Add to favourites

Wi-Fi 802.11ac/abgn + Bluetooth 5 LE Dual-Band Module based on the 88W8987 IC + 88PG823 PMIC 3÷3.6V, -30÷85°C, dimensions 24×12×2.73mm, SMT 64pad package

Parameters

Dimensions:	24x12x2,73mm
Interface:	UART
Supply voltage:	3V~3,6V
Operating temperature (range):	-30°C ~ 85°C
Communication protocol:	802.11 b/g/n/ac; Bluetooth 5
Transmission speed:	433Mbps
Antenna:	Built-In

All parameters

Manufacturer:: Panasonic Manufacturer part number: ENW-F9408A1EF RoHS Case style: Rys.PAN9028 Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	17,4564	16,8777	16,4571	16,0714	15,8692

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	24x12x2,73mm
Interface:	UART
Supply voltage:	3V~3,6V
Operating temperature (range):	-30°C ~ 85°C
Communication protocol:	802.11 b/g/n/ac; Bluetooth 5
Transmission speed:	433Mbps
Antenna:	Built-In
Frequency:	5GHz
Mounting:	SMD
