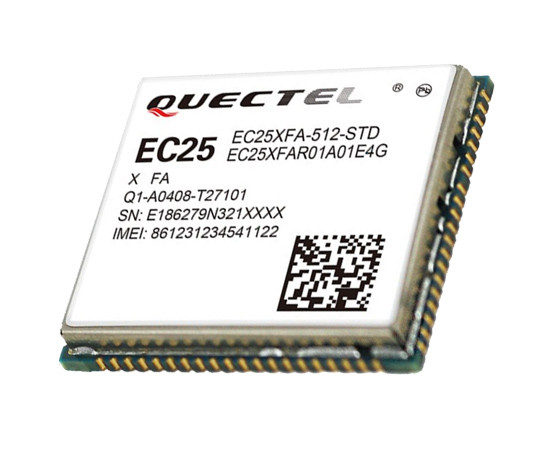

EC25-E
Symbol Micros:
RF QUECTEL EC25-E
Case : Rys.QUECTEL-EC2x
LTE Cat.4 Module based on the Qualcomm MDM9x07 chipset; PCM/UART/USB; 3,3V~4,3V; -40°C ~ 85°C; Dimensions 32x29x2,4mm; SMT 144-pad package; EC25EFA-512-STD
Parameters
| Case: | Rys.QUECTEL-EC2x |
| Dimensions: | 32x29x2,4mm |
| Interface: | PCM/UART/USB |
| Supply voltage range: | 3,3V~4,3V |
| Band: | 1,4MHz/3MHz/5MHz/10MHz/15MHz/20MHz |
| Communication module type: | LTE |
| Transmission: | LTE |
| Case: | Rys.QUECTEL-EC2x |
| Dimensions: | 32x29x2,4mm |
| Interface: | PCM/UART/USB |
| Supply voltage range: | 3,3V~4,3V |
| Band: | 1,4MHz/3MHz/5MHz/10MHz/15MHz/20MHz |
| Communication module type: | LTE |
| Transmission: | LTE |
| Manufacturer: | Quectel |
| Standard: | 3GPP |
| Operating temperature (range): | -40°C ~ 85°C |
Detailed description
EC25-E is an LTE Cat. 4 module designed for M2M and IoT applications. It can download data from the fourth-generation network at speeds of up to 150Mbit/s. Data upload can occur at speeds of 50Mbit/s. A major advantage of EC25-E is its backward compatibility with older technologies such as UMTS/HSDPA+ and GPRS/EDGE. In the absence of LTE signal, the module can automatically switch to another available technology. Another benefit of the module is the presence of a GNSS signal receiver. A rich set of internet protocols, communication interfaces, and additional features (USB drivers for Windows XP/Vista/7/8/8.1, Linux, Android/eCall) extend the module's range of applications.
