RT5-433.92
| Dimensions: | 17,78x11,43mm |
| Supply voltage: | 3,3V |
| Transmission speed: | 9,6kbps |
| Frequency: | 433,92MHz |
| Modulation: | ASK |
| Transmitter output power: | 7dBm |
| Type: | Transmitter |
| Dimensions: | 17,78x11,43mm |
| Supply voltage: | 3,3V |
| Transmission speed: | 9,6kbps |
| Frequency: | 433,92MHz |
| Modulation: | ASK |
| Transmitter output power: | 7dBm |
| Type: | Transmitter |
| Operating temperature (range): | -25°C ~ 80°C |
| Antenna: | External |
| Mounting: | THT |

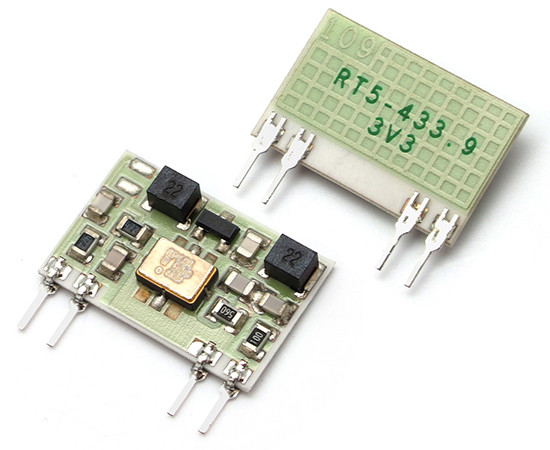

RT5-433.92 is a hybrid radio transmitter module designed for digital signal transmission with ASK modulation in the 433.92MHz band. The module is equipped with a SAW resonator. To create a complete radio transmitter, only an external encoding circuit needs to be added. The module operates with a supply voltage ranging from 2..14V, typically consuming 3mA of current at a 5V supply, and operates within a temperature range of -25..+80°C. It features a typical output power of 7dBm at a 12V supply voltage (product code 03E68109D). A higher output power version of 50mW is also available (product code 440002920). The Thick Film Hybrid technology ensures excellent frequency stability. The RT5 module is supplied in a SIL package with dimensions of 17.78 x 11.43 mm, suitable for through-hole mounting.
