W3006

Symbol Micros: RF W3006

145529

RF W3006

Contractor Symbol:

Case : RF ANTxxx

Datasheet

Technical drawing Add to favourites

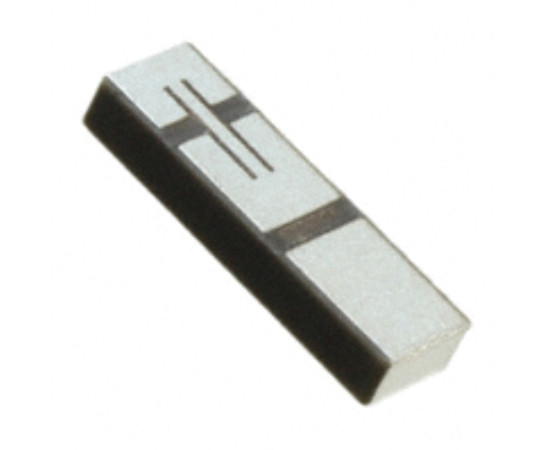

Antenna Dual Band 2.7dB Gain 2483.5MHz/5850MHz 2-Pin SMD

Parameters

Dimensions:	10x3,2x1,5mm
Frequency range:	2,4-5,85GHz
Peak gain:	4,5dBi
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
Polarisation:	Linear

All parameters

Manufacturer:: PULSE Manufacturer part number: W3006 RoHS Case style: RF ANTxxx Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,5511	2,1294	1,8858	1,7686	1,7007

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: PULSE Manufacturer part number: W3006 Case style: RF ANTxxx

External warehouse:

22000 pcs.

Quantity of pcs.	1000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,7007

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	10x3,2x1,5mm
Frequency range:	2,4-5,85GHz
Peak gain:	4,5dBi
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
Polarisation:	Linear
Impedance:	50Ohm
