RF W3554B0293

Symbol Micros: RF W3554B0293

364220

RF W3554B0293

Contractor Symbol:

Case : Rys.W3554

Datasheet

Technical drawing Add to favourites

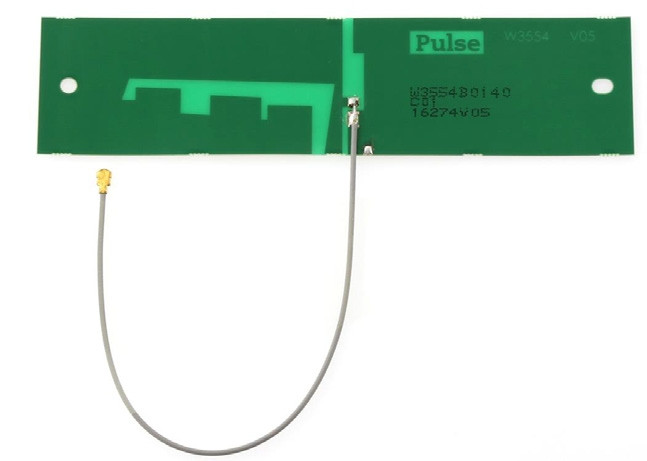

Dipole Antenna: GSM/ISM/GPS/WiFi/Bluetooth, 698÷6000MHz, gain 1.9÷3.5dBi, dimensions 120×30×0.2mm IPEX connector, adhesive mount, OD1.13 293mm cable

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	120x30x0,2mm
Frequency range:	698~6000MHz
Peak gain:	3,5dBi
Manufacturer:	Pulse
Antenna type:	GSM/ISM/GPS/WiFi/Bluetooth
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	PCB

All parameters

Manufacturer:: PULSE Manufacturer part number: W3554B0293 RoHS Case style: Rys.W3554 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	3,6080	3,0869	2,9677	2,8485	2,7761

Add to comparison tool Add inquiry (RFQ)

Packaging:
5/10 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	120x30x0,2mm
Frequency range:	698~6000MHz
Peak gain:	3,5dBi
Manufacturer:	Pulse
Antenna type:	GSM/ISM/GPS/WiFi/Bluetooth
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	PCB
Type of connector:	IPEX
Mounting:	Adhesive
Cable length:	0,293m
Polarisation:	Linear
Impedance:	50Ohm
