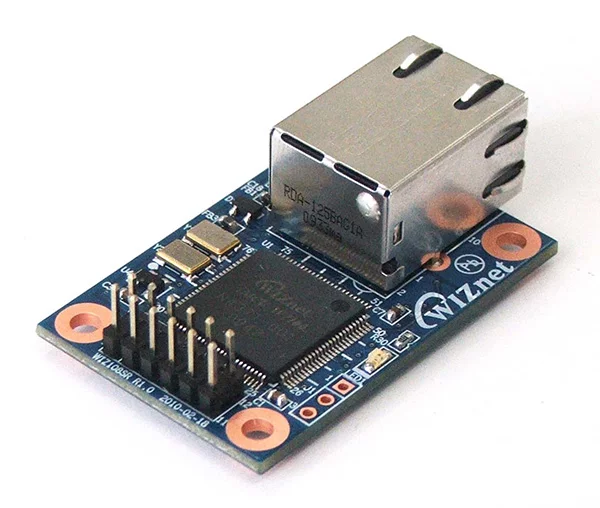

WIZ108SR is the compact sized serial to Ethernet module using W7100A WIZnet iMCU, 8051. WIZ108SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment
It complies with industrial temperature standard and supports the serial interface of RS422/485.
Features:
• Serial to Ethernet Module based on W7100A
• Pin-header type & RJ-45 mounted module
• Serial signals : TXD, RXD, RTS, CTS, GND, (RS-232 transceiver optionally built-in)
• Support the configuration method of AT command & Configuration tool program
• Support password function for the security
• 10/100Mbps Ethernet & Max.230kbps serial speed
• Support WIZ VSP (Virtual Serial Port) program
Hardware Specification:
Pin Header Connector Type: 2.54mm Pitch (6×2)
Dimension (mm): 48(L) x 30 (W) x 18 (H)
Input Voltage: 3.3V
Max. Power Consumption: 250mA
Operation Temperature: -40 ~ 85°C
RoHS, SVHC Compliant
Utilities:
Configuration Tool for Windows
WizVSP: Virtual Serial Port (COM port) for User’s Programs
