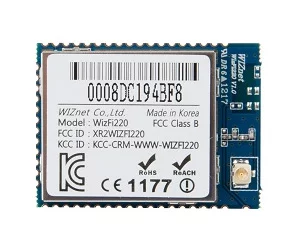

WIZFI220-CON WiFi Modules WIZNET
Symbol Micros:
RF WIZFI220-CON
Case : RF WIZFI220
Moduł WiFi; 802.11b/g/n; 2,4GHz~2,5GHz; 3V~3,6V; -40°C~85°C; 11Mbps; U.FL; UART/SPI1/WAKE/ALARM/GPIO; 32x23,5x3mm;
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Dimensions: | 32x23,5x3mm |
| Interface: | UART/SPI1/WAKE/ALARM/GPIO |
| Supply voltage: | 3V ~ 3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Transmission speed: | 11Mbps |
| Antenna: | None |
| Communication protocol: | 802.11 b/g/n |
| Dimensions: | 32x23,5x3mm |
| Interface: | UART/SPI1/WAKE/ALARM/GPIO |
| Supply voltage: | 3V ~ 3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Transmission speed: | 11Mbps |
| Antenna: | None |
| Communication protocol: | 802.11 b/g/n |
| Frequency: | 2,5GHz |
| Mounting: | SMD |
Detailed description
Antenna CA (Chip Antenna)
Band: 2,4 GHz
Booting Time: 0,02 sec (20msec)
Dimension: 32x23.5x3mm
Ethernet I/F: No
Maximum number of Clients in AP Mode: 3
Footprint: SMD
Power Consumption:
Standby = 34μA
Receive = 125mA
Transmit+Receive = 290mA
Serial Command Type: AT
Data Rate Physical: 801.11b: 1, 2, 5.5 Mbps
TX Output Power: 17dBm ± 1.5dB
Operation Mode: Ad hoc, Limited AP, Station (Client)
Operating Voltage: 3.3 V
Security: Enterprise (EAP-FAST, EAP-TLS, EAP-TTLS, PEAP), WEP, WPA, WPA2
Configuration I/F
Serial Command, Windows Configuration Tool
Standard: IEEE 802.11b
Operating Temperature: -40°C to +85 °C
Certification: CE, FCC, KCC, TELEC
Wifi Interface : 1T1R RF Interface
Memory: 386Kb
