LTC3122EDE Linear Technology

Symbol Micros: ST3122ede

118932

ST3122ede

Contractor Symbol:

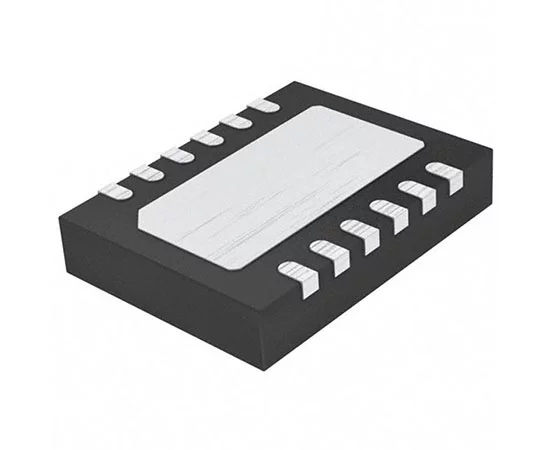

Case : DFN12(4x3)

Datasheet

Technical drawing Add to favourites

Synchr. Step-Up Switching Regulator, 2.5A, Vin 1.8÷5.5V, Vout 2.2÷15V 1MHz LTC3122EDE#PBF LTC3122EDE#TRPBF

Parameters

Manufacturer:	Linear Technology
Integrated circuit type:	DC/DC Converter
Input voltage range:	1,8~5,5V
Mounting:	SMD
Case:	DFN12(4x3)
Dimensions:	4x4x0,75mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: Linear Technology Manufacturer part number: LTC3122EDE RoHS Case style: DFN12(4x3) Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	10+	30+	100+
Net price (EUR)	5,8450	5,2028	4,3668	4,0889	3,9231

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Linear Technology
Integrated circuit type:	DC/DC Converter
Input voltage range:	1,8~5,5V
Mounting:	SMD
Case:	DFN12(4x3)
Dimensions:	4x4x0,75mm
Operating temperature (range):	-40°C ~ 125°C
