LM5017SD

Symbol Micros: ST5017sd

116094

ST5017sd

Contractor Symbol:

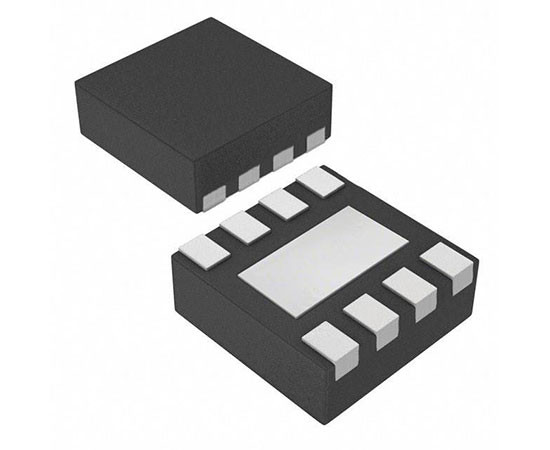

Case : WSON08(4x4)

Datasheet

Add to favourites

Synchr. Step-Down Sw. Reg., 0.65A, Vin 7.5÷100V, Vout 1.25÷90V, 1MHz, -40÷125°C LM5017SD/NOPB, LM5017SDX/NOPB

Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	7.5V ~ 100V
Mounting:	SMD
Case:	WSON08(4x4)
Dimensions:	4.0x4.0x0.8mm
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	7.5V ~ 100V
Mounting:	SMD
Case:	WSON08(4x4)
Dimensions:	4.0x4.0x0.8mm
Operating temperature (range):	-40°C ~ 125°C
