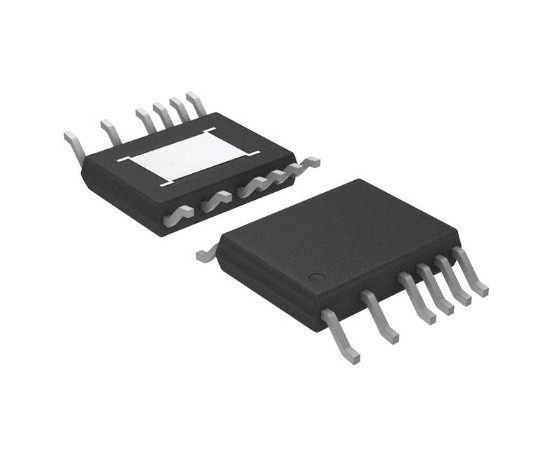

LTC3630AEMSE#PBF Linear Tech

Symbol Micros: STLTC3630aemse

109098

STLTC3630aemse

Contractor Symbol:

Case : MSOP16

Datasheet

Technical drawing Add to favourites

Step-Down Synchronous DC-DC Converter, 0.5A, Vin 4÷76V, Vout 0.8V, -40÷125°C LTC3630AEMSE#TRPBF

Parameters

Manufacturer:	Linear Technology
Integrated circuit type:	DC/DC Converter
Input voltage range:	4~76V
Mounting:	SMD
Case:	MSOP16
Dimensions:	4,04x3x0,86mm
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Linear Technology
Integrated circuit type:	DC/DC Converter
Input voltage range:	4~76V
Mounting:	SMD
Case:	MSOP16
Dimensions:	4,04x3x0,86mm
Operating temperature (range):	-40°C ~ 125°C
