LM431SAIMFX

Symbol Micros: STO431saimfx

112782

STO431saimfx

Contractor Symbol:

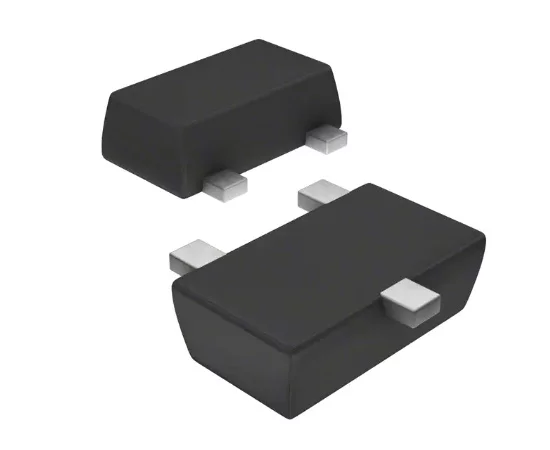

Case : SOT23F

Datasheet

Technical drawing Add to favourites

Shunt Voltage Reference; 2,5V~36V; +/-2%; 50ppm/°C; -40°C ~ 85°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Input voltage range:	-
Output voltage range [V]:	2,5V~36V
Tolerance:	2%
Operating temperature (range):	-40°C ~ 85°C
Case:	SOT23F
Temperature coefficient:	50ppm/°C

All parameters

Manufacturer:: ON-Semicoductor Manufacturer part number: LM431SAIMFX RoHS Case style: SOT23Ft/r Datasheet

In stock:

80 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,2836	0,1502	0,1165	0,1073	0,1029

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	-
Output voltage range [V]:	2,5V~36V
Tolerance:	2%
Operating temperature (range):	-40°C ~ 85°C
Case:	SOT23F
Temperature coefficient:	50ppm/°C
