2N7002CK,215

Symbol Micros: T2N7002ck

113714

T2N7002ck

Contractor Symbol:

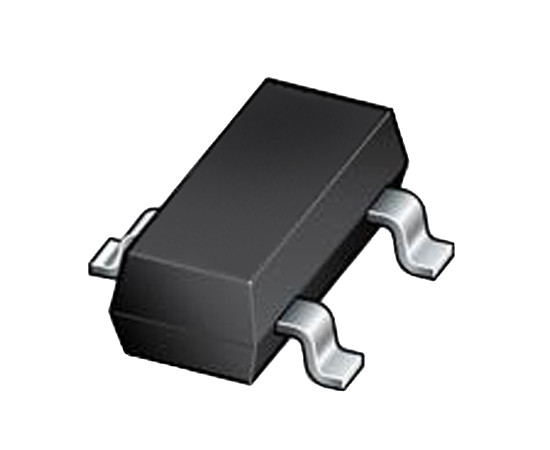

Case : SOT23-3

Datasheet

Technical drawing Add to favourites

Tranzystor N-Channel MOSFET; 60V; 20V; 4,4Ohm; 300mA; 350mW; -55°C ~ 150°C; Obsolete = wycofano z produkcji;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Open channel resistance:	4,4Ohm
Max. drain current:	300mA
Max. power loss:	350mW
Case:	SOT23-3
Manufacturer:	NXP
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: NXP Manufacturer part number: 2N7002CK RoHS Case style: SOT23-3 t/r Datasheet

In stock:

0 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,2504	0,1331	0,1032	0,0952	0,0913

Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	4,4Ohm
Max. drain current:	300mA
Max. power loss:	350mW
Case:	SOT23-3
Manufacturer:	NXP
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
