AO7407

Symbol Micros: TAO7407

131347

TAO7407

Contractor Symbol:

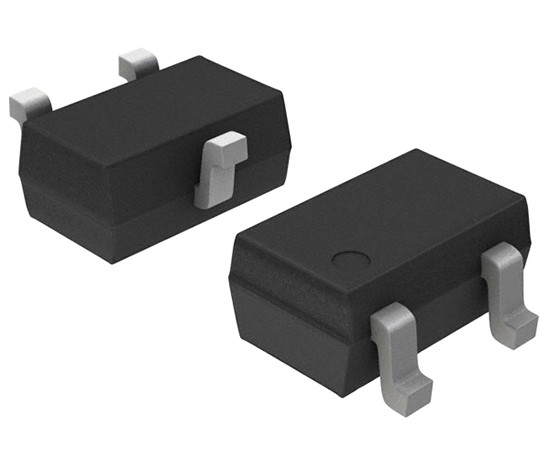

Case : SC70-3

Datasheet

Technical drawing Add to favourites

Transistor P-Channel MOSFET; -20V; 10V; 125mOhm; -5A; 290mW; -50°C~150°C; Similar to: AO7407-VB;

Parameters

Open channel resistance:	125mOhm
Max. drain current:	-5A
Max. power loss:	290mW
Case:	SC70-3
Manufacturer:	TECH PUBLIC
Max. drain-source voltage:	-20V
Transistor type:	P-MOSFET

All parameters

Manufacturer:: TECH PUBLIC Manufacturer part number: AO7407 RoHS Case style: SC70-3 t/r Datasheet

In stock:

100 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2712	0,1486	0,0974	0,0842	0,0776

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	125mOhm
Max. drain current:	-5A
Max. power loss:	290mW
Case:	SC70-3
Manufacturer:	TECH PUBLIC
Max. drain-source voltage:	-20V
Transistor type:	P-MOSFET
Max. gate-source Voltage:	10V
Operating temperature (range):	-50°C ~ 150°C
Mounting:	SMD
