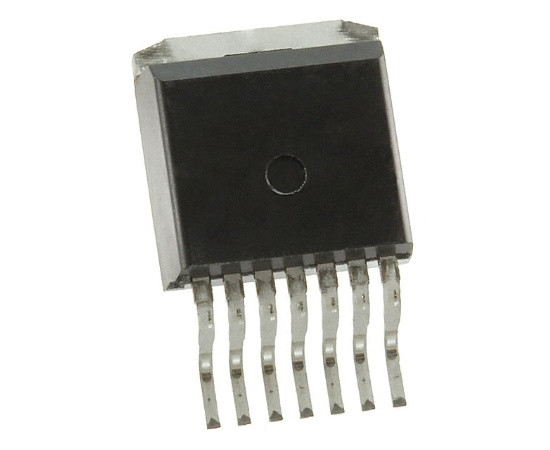

AUIRF3805S-7P International Rectifier

Symbol Micros: TAUIRF3805s-7p

99344

TAUIRF3805s-7p

Contractor Symbol:

Case : D2PAK/7

Datasheet

Technical drawing Add to favourites

MOSFET N-CH 55V 240A Automotive

Parameters

Open channel resistance:	2,6mOhm
Max. drain current:	240A
Max. power loss:	300W
Case:	D2PAK/7
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	55V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	2,6mOhm
Max. drain current:	240A
Max. power loss:	300W
Case:	D2PAK/7
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	55V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
