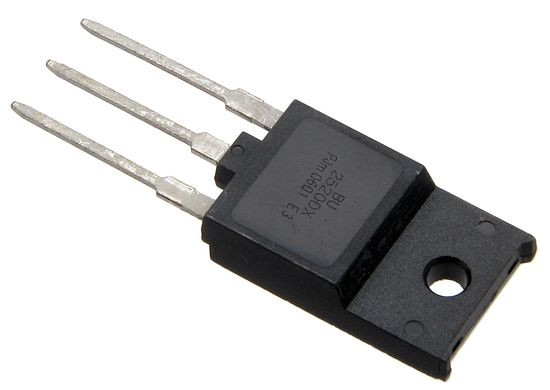

BU2520DX SOT399

Symbol Micros: TBU2520dx

43378

TBU2520dx

Contractor Symbol:

Case : SOT399

Datasheet

Add to favourites

NPN 10A 800V 45W Replacement: BU2520DF

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Power dissipation:	45W
Current gain factor:	13
Case:	SOT399
Max. collector current:	10A
Max collector-emmiter voltage:	800V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	NPN

All parameters

Manufacturer:: PMC-Sierra Manufacturer part number: BU2520DX RoHS Case style: SOT399

In stock:

45 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9208	1,6108	1,4324	1,3197	1,2797

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	45W
Current gain factor:	13
Case:	SOT399
Max. collector current:	10A
Max collector-emmiter voltage:	800V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	NPN
