BUV48A

Symbol Micros: TBUV48 a c

11358

TBUV48 a c

Contractor Symbol:

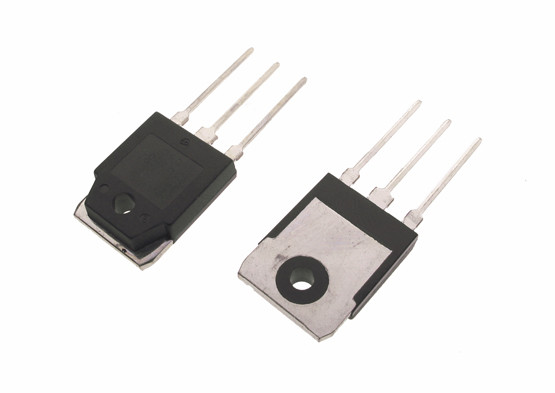

Case : TO 3P

Datasheet

Technical drawing Add to favourites

NPN 15A 450V 150W CYD Mhz

Parameters

Power dissipation:	125W
Current gain factor:	8
Manufacturer:	STMicroelectronics
Case:	TO 3P
Max. collector current:	15A
Max collector-emmiter voltage:	450V
Operating temperature (range):	-65°C ~ 150°C

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-05-10

Quantity of pcs.: 100

• Parameters

Power dissipation:	125W
Current gain factor:	8
Manufacturer:	STMicroelectronics
Case:	TO 3P
Max. collector current:	15A
Max collector-emmiter voltage:	450V
Operating temperature (range):	-65°C ~ 150°C
Transistor type:	NPN
