CSD17308Q3

Symbol Micros: TCSD17308q3

207524

TCSD17308q3

Contractor Symbol:

Case : VSON-CLIP08(3.3x3.3)

Datasheet

Technical drawing Add to favourites

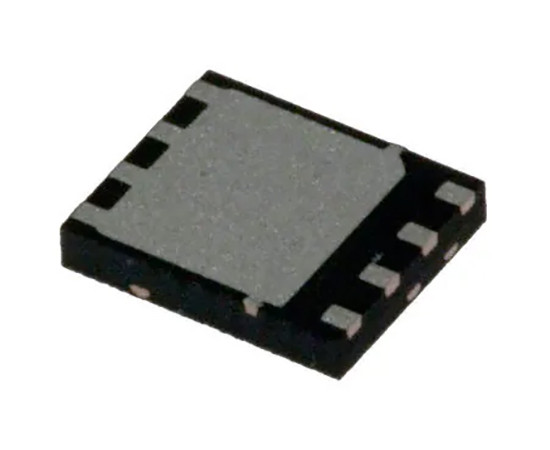

Transistor N-Channel MOSFET; 30V; 10V; 16,5mOhm; 44A; 28W; -55°C ~ 150°C; CSD17308Q3T

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Open channel resistance:	16,5mOhm
Max. drain current:	44A
Max. power loss:	28W
Case:	VSON-CLIP08(3.3x3.3)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: CSD17308Q3 RoHS Case style: VSON-CLIP08(3.3x3.3) Datasheet

In stock:

50 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,8353	0,5288	0,4165	0,3791	0,3627

Add to comparison tool Add inquiry (RFQ)

Packaging:
1050 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	16,5mOhm
Max. drain current:	44A
Max. power loss:	28W
Case:	VSON-CLIP08(3.3x3.3)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	10V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
