DMP2018LFK-7

Symbol Micros: TDMP2018LFK-7 Diodes

151442

TDMP2018LFK-7 Diodes

Contractor Symbol:

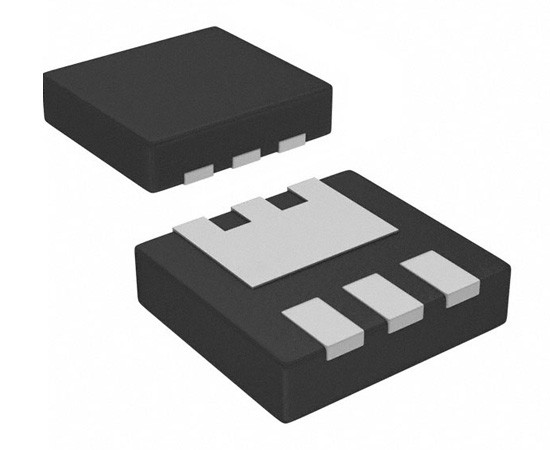

Case : UDFN2523-6

Datasheet

Add to favourites

Trans MOSFET P-CH 20V 9.2A Automotive 6-Pin UDFN EP T/R

Parameters

Open channel resistance:	25mOhm
Max. drain current:	9,2A
Max. power loss:	2,1W
Case:	UDFN2523-6
Manufacturer:	DIODES
Max. drain-source voltage:	20V
Transistor type:	P-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	25mOhm
Max. drain current:	9,2A
Max. power loss:	2,1W
Case:	UDFN2523-6
Manufacturer:	DIODES
Max. drain-source voltage:	20V
Transistor type:	P-MOSFET
Max. gate-source Voltage:	12V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
