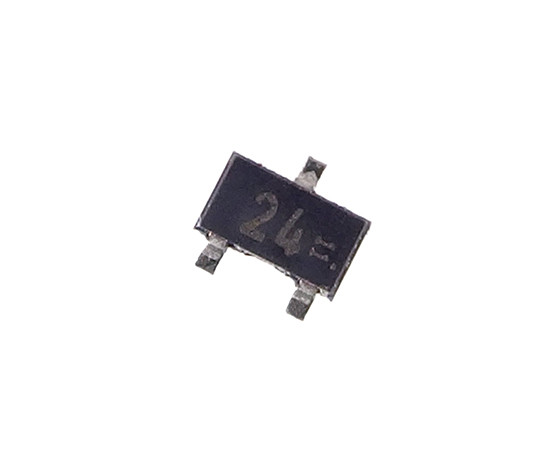

DTC114EKAT146

Symbol Micros: TDTC114ekat146

49875

TDTC114ekat146

Contractor Symbol:

Case : SC-59

Datasheet

Technical drawing Add to favourites

NPN 50mA 50V 10kOhm

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Power dissipation:	200mW
Cutoff frequency:	250MHz
Current gain factor:	30
Manufacturer:	ROHM
Case:	SC-59
Max. collector current:	50mA
Max collector-emmiter voltage:	50V

All parameters

Manufacturer:: ROHM - Japan Manufacturer part number: DTC114EKA T146 RoHS Case style: SC-59 t/r Datasheet

In stock:

2920 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,1585	0,0751	0,0424	0,0321	0,0288

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000/6000 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	200mW
Cutoff frequency:	250MHz
Current gain factor:	30
Manufacturer:	ROHM
Case:	SC-59
Max. collector current:	50mA
Max collector-emmiter voltage:	50V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	NPN
