FDMS6681Z Fairchild

Symbol Micros: TFDMS6681z

103528

TFDMS6681z

Contractor Symbol:

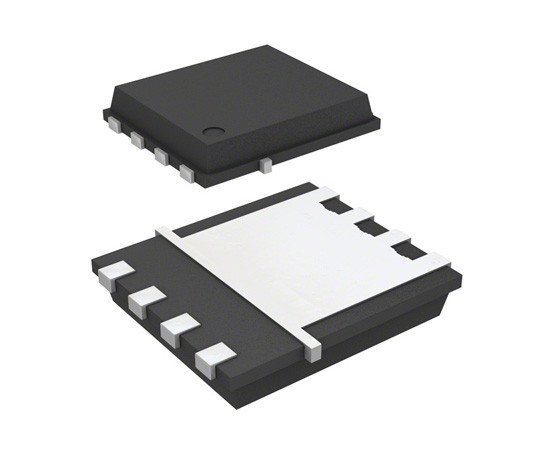

Case : Power56

Datasheet

Technical drawing Add to favourites

P-MOSFET 30V 21.1A 3.2mΩ 2.5W

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Open channel resistance:	5mOhm
Max. drain current:	122A
Max. power loss:	73W
Case:	Power56
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	30V
Transistor type:	P-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	5mOhm
Max. drain current:	122A
Max. power loss:	73W
Case:	Power56
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	30V
Transistor type:	P-MOSFET
Max. gate-source Voltage:	25V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
