FDY301NZ

Symbol Micros: TFDY301nz

122727

TFDY301nz

Contractor Symbol:

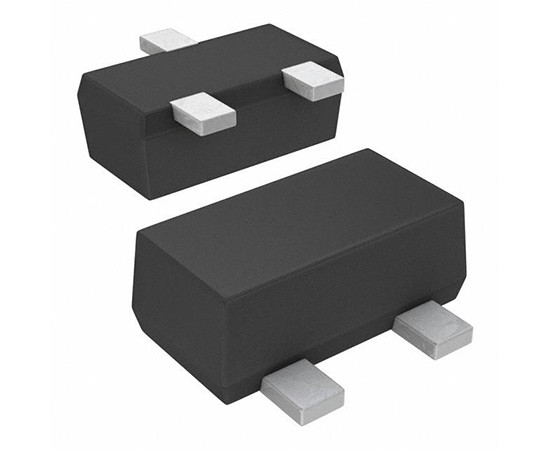

Case : SOT523

Datasheet

Technical drawing Add to favourites

Trans MOSFET N-CH 20V 0.2A 3-Pin SOT-523F T/R

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Open channel resistance:	10Ohm
Max. drain current:	200mA
Max. power loss:	625mW
Case:	SOT523
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	20V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	10Ohm
Max. drain current:	200mA
Max. power loss:	625mW
Case:	SOT523
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	20V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	12V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
