IRG7PH35UD1-EP

Symbol Micros: TIRG7ph35ud1-ep

119139

TIRG7ph35ud1-ep

Contractor Symbol:

Case : TO247AD

Datasheet

Add to favourites

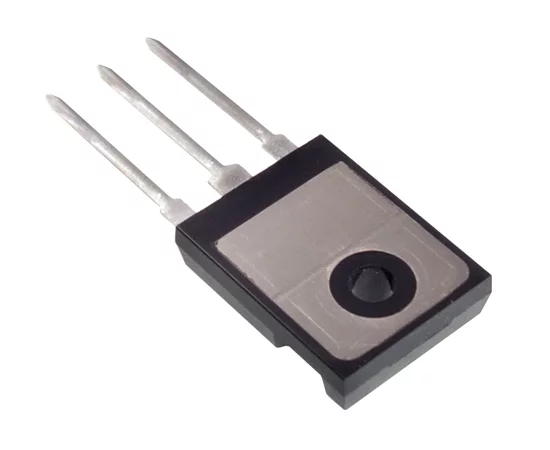

50A; 1200V; 179W; IGBT w/ Diode

Parameters

Gate charge:	130nC
Max. dissipated power:	179W
Max. collector current:	50A
Max collector current (impulse):	150A
Forvard volatge [Vgeth]:	3,0V ~ 6,0V
Case:	TO247AD
Manufacturer:	International Rectifier

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Gate charge:	130nC
Max. dissipated power:	179W
Max. collector current:	50A
Max collector current (impulse):	150A
Forvard volatge [Vgeth]:	3,0V ~ 6,0V
Case:	TO247AD
Manufacturer:	International Rectifier
Collector-emitter voltage:	1200V
Operating temperature (range):	-55°C ~ 150°C
Gate-emitter voltage:	30V
