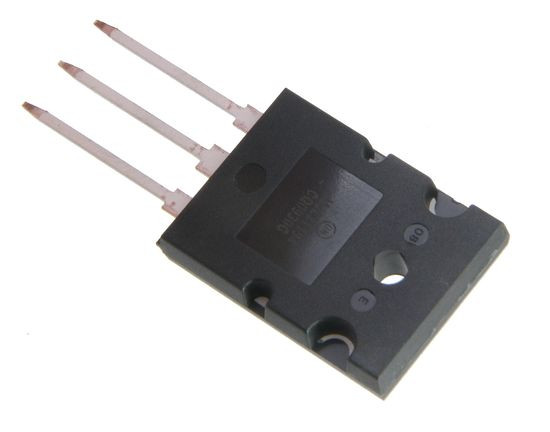

MJL21194

Symbol Micros: TMJL21194

35435

TMJL21194

Contractor Symbol:

Case : TO264

Datasheet

Technical drawing Add to favourites

NPN 16A 250V 200W 4MHz MJL21194G; SET: MJL21193 + MJL21194

Parameters

Power dissipation:	200W
Cutoff frequency:	4MHz
Current gain factor:	75
Manufacturer:	ON SEMICONDUCTOR
Case:	TO264
Max. collector current:	16A
Max collector-emmiter voltage:	250V

All parameters

Manufacturer:: ON-Semicoductor Manufacturer part number: MJL21194G RoHS Case style: TO264 Datasheet

In stock:

14 pcs.

Quantity of pcs.	1+	5+	25+	50+	100+
Net price (EUR)	12,5405	10,2431	9,1992	8,9490	8,7703

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

Manufacturer:: ON-Semicoductor Manufacturer part number: MJL21194G Case style: TO264

External warehouse:

120 pcs.

Quantity of pcs.	50+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	8,7703

Add to comparison tool Add inquiry (RFQ)

Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Power dissipation:	200W
Cutoff frequency:	4MHz
Current gain factor:	75
Manufacturer:	ON SEMICONDUCTOR
Case:	TO264
Max. collector current:	16A
Max collector-emmiter voltage:	250V
Operating temperature (range):	-65°C ~ 150°C
Transistor type:	NPN
