NTLJD4116NT1G

Symbol Micros: TNTLJD4116n

133064

TNTLJD4116n

Contractor Symbol:

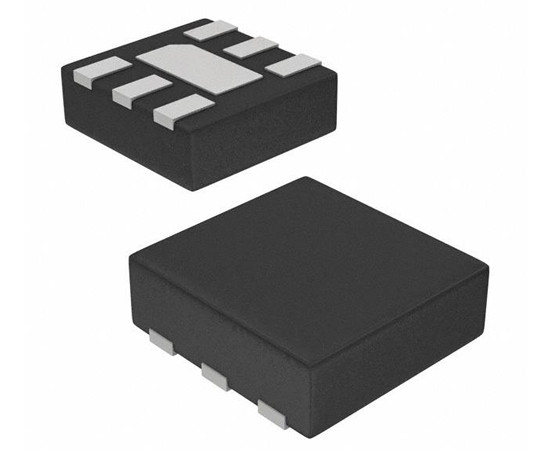

Case : WDFN6 =ODFN6(2.1x2)

Datasheet

Technical drawing Add to favourites

Transistor 2xN-Channel MOSFET; 30V; 15V; 70mOhm; 2,5A; 710mW; -55°C~150°C;

Parameters

Open channel resistance:	70mOhm
Max. drain current:	2,5A
Max. power loss:	710mW
Case:	WDFN6 (2x2)
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	30V
Max. drain-gate voltage:	4,5V

All parameters

Manufacturer:: ON-Semicoductor Manufacturer part number: NTLJD4116NT1G Case style: WDFN6 =ODFN6(2.1x2)

External warehouse:

54000 pcs.

Quantity of pcs.	3000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2760

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Open channel resistance:	70mOhm
Max. drain current:	2,5A
Max. power loss:	710mW
Case:	WDFN6 (2x2)
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	30V
Max. drain-gate voltage:	4,5V
Transistor type:	2xN-MOSFET
Max. gate-source Voltage:	15V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
