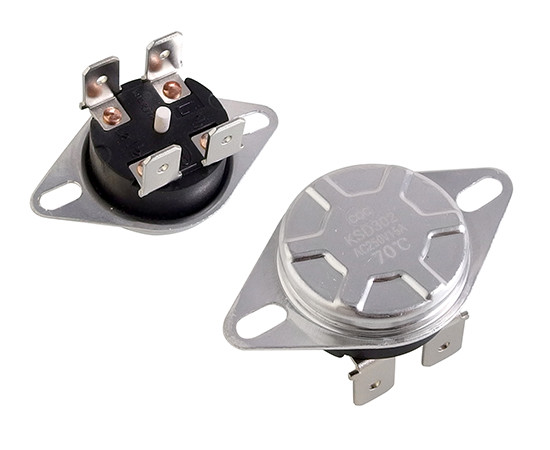

Bimetallic thermostat; 70°C

Symbol Micros: TO KSD302-070 15A

111065

TO KSD302-070 15A

Contractor Symbol:

Case : Rys.KSD302

Datasheet

Technical drawing Add to favourites

Normal closed; 70°C; 250VAC; 15A; with manual reset; vertical connectors

Parameters

Switching temperature:	70°C
Leads:	Vertical connectors
Current:	15A
Case:	N/A
Manufacturer:	N/A
Operating voltage:	250V
Output configuration:	NC

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Switching temperature:	70°C
Leads:	Vertical connectors
Current:	15A
Case:	N/A
Manufacturer:	N/A
Operating voltage:	250V
Output configuration:	NC
