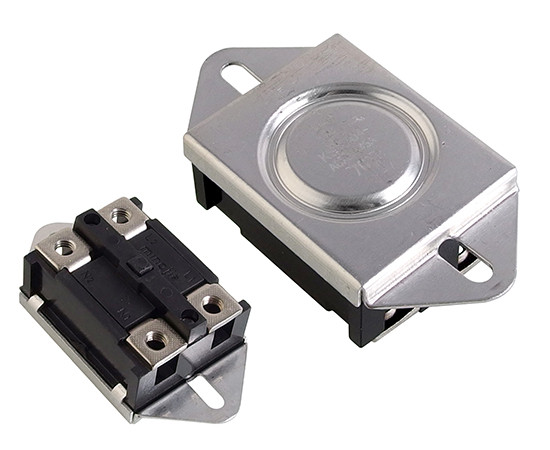

Bimetallic thermostat; 90°C

Symbol Micros: TO KSD304-090 45A

111082

TO KSD304-090 45A

Contractor Symbol:

Case : Rys.KSD304

Datasheet

Technical drawing Add to favourites

Normal closed; 90°C; 250VAC; 45A; with manual reset; horizontal connectors

Parameters

Switching temperature:	90°C
Leads:	Horizontal connectors
Current:	45A
Case:	N/A
Manufacturer:	N/A
Operating voltage:	250V
Output configuration:	NC

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Switching temperature:	90°C
Leads:	Horizontal connectors
Current:	45A
Case:	N/A
Manufacturer:	N/A
Operating voltage:	250V
Output configuration:	NC
