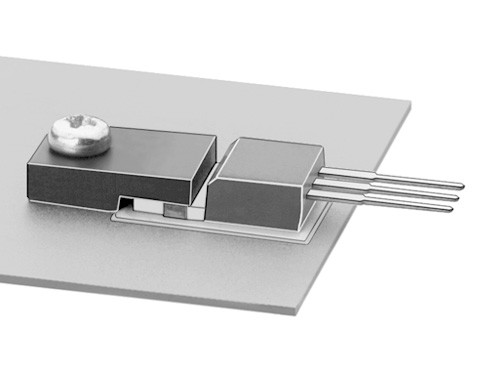

ISP220 Insulating Clamping for Power Transistors TO220

Symbol Micros: TPISP220

96224

TPISP220

Contractor Symbol:

Case : Rys.TPISP220

Datasheet

Technical drawing Add to favourites

Dimensions: 15.2 x 10.1mm Φ4 x 3,4mm; 205°C(1,8MPa); 135°C(8MPa);

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	15,2 x 10,1mm
Diameter:	4,00mm
Thickness:	3,4mm
Usage:	TO220
Heatsink pad type (material):	Polyamide
Parameters:	Mounting clip for transistors

All parameters

Manufacturer:: Fischer Manufacturer part number: ISP 220 RoHS Case style: Rys.TPISP220 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0124	0,6718	0,5567	0,5027	0,4815

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: Fischer Manufacturer part number: ISP 220 Case style: Rys.TPISP220

External warehouse:

1937 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4815

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	15,2 x 10,1mm
Diameter:	4,00mm
Thickness:	3,4mm
Usage:	TO220
Heatsink pad type (material):	Polyamide
Parameters:	Mounting clip for transistors
