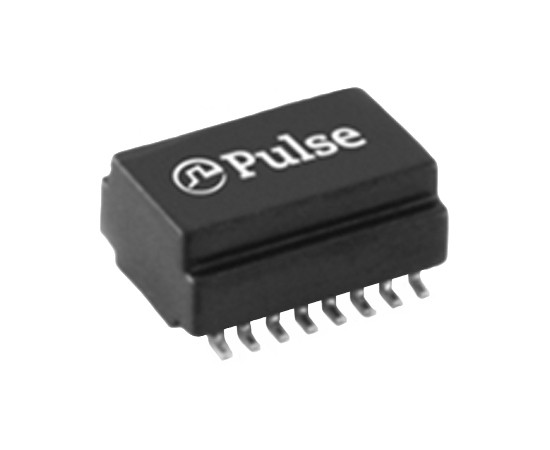

H1260FNL PULSE Transformer LAN

Symbol Micros: TR H1260FNL

110517

TR H1260FNL

Contractor Symbol:

Case : Rys.H1260FNL

Datasheet

Technical drawing Add to favourites

Turns ratio: 1:1/1:1; Ethernet (100 Base TX); SMD; NonPoE; SMD; dimensions: 12.7x6x9.53mm; operating temperature: 0°C~70°C; max.insertion loss -1.1dB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	9,53mm
Width:	6mm
Lenght:	12,7mm
Manufacturer:	Pulse
Operating temperature (range):	0°C ~ 70°C
Mounting:	SMD

All parameters

Manufacturer:: PULSE Manufacturer part number: H1260FNL RoHS Case style: Rys.H1260FNL Datasheet

In stock:

40 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	3,9157	3,3144	2,9550	2,7412	2,6285

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Height:	9,53mm
Width:	6mm
Lenght:	12,7mm
Manufacturer:	Pulse
Operating temperature (range):	0°C ~ 70°C
Mounting:	SMD
