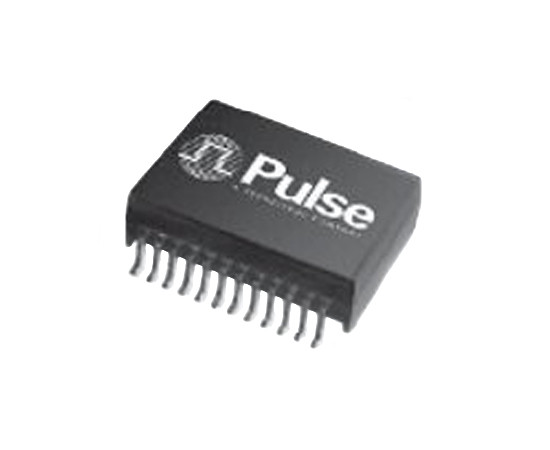

H5007NL PULSE Transformer LAN

Symbol Micros: TR H5007NL

87715

TR H5007NL

Contractor Symbol:

Case :

Datasheet

Technical drawing Add to favourites

Turns ratio: RX 1:1, TX 1:1; Ethernet (1000 Base-T); SMD; dimensions: 17.53x16x5.51mm; operating temperature: -40°C~85°C; max.insertion loss 1dB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	5,51mm
Width:	16mm
Lenght:	17,53mm
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD

All parameters

Manufacturer:: PULSE Manufacturer part number: H5007NL Case style: Rys.H5007NL

External warehouse:

27125 pcs.

Quantity of pcs.	25+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,0115

Add to comparison tool Add inquiry (RFQ)

Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Height:	5,51mm
Width:	16mm
Lenght:	17,53mm
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
