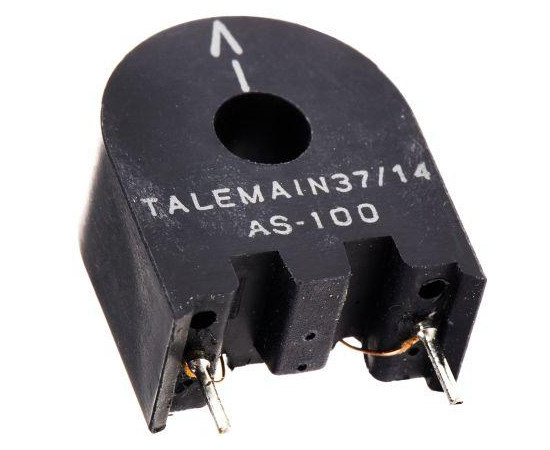

AS-100 TALEMA Sensor

Symbol Micros: TR P AS-100

27633

TR P AS-100

Contractor Symbol:

Case : Rys.AS-100

Datasheet

Technical drawing Add to favourites

High frequency current sensor; turns ratio 1:50; Lsec=6mH; DCR=0.6R max; Isec=300mA max; V=175uS max

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	Talema
Series:	AS
Width:	17,2mm
Height:	17,0mm
Turns ratio:	1:50
Lenght:	9,53mm
Inductance:	6mH

All parameters

Manufacturer:: TALEMA Manufacturer part number: AS-100 Case style: Rys.AS-100

External warehouse:

1875 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0247

Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Talema
Series:	AS
Width:	17,2mm
Height:	17,0mm
Turns ratio:	1:50
Lenght:	9,53mm
Inductance:	6mH
Operating temperature (range):	-40°C ~ 120°C
Resistance:	0,60 Ohm
Current:	0,3A
Volt uS:	175V
