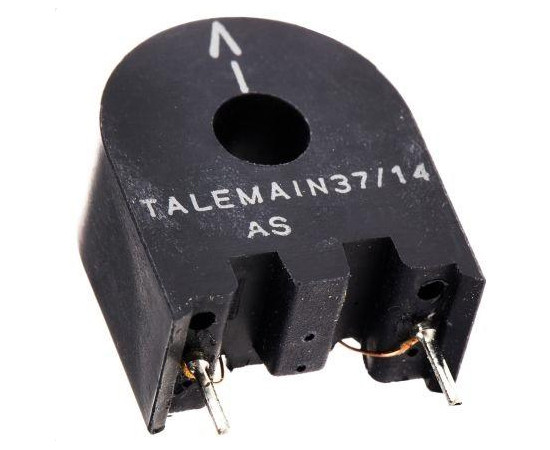

AS-101 TALEMA Sensor

Symbol Micros: TR P AS-101

27635

TR P AS-101

Contractor Symbol:

Case : Rys.AS

Datasheet

Technical drawing Add to favourites

High frequency current sensor; turns ratio 1:100; Lsec=25mH; DCR=1.1R max; Isec=150mA max; V=350uS max

Parameters

Manufacturer:	Talema
Series:	AS
Width:	17,2mm
Height:	17,0mm
Turns ratio:	1:100
Lenght:	9,53mm
Inductance:	25mH

All parameters

Manufacturer:: TALEMA Manufacturer part number: AS-101 Case style: Rys.AS

External warehouse:

3210 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0315

Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Talema
Series:	AS
Width:	17,2mm
Height:	17,0mm
Turns ratio:	1:100
Lenght:	9,53mm
Inductance:	25mH
Operating temperature (range):	-40°C ~ 120°C
Resistance:	1,1 Ohm
Current:	0,15A
Volt uS:	350V
