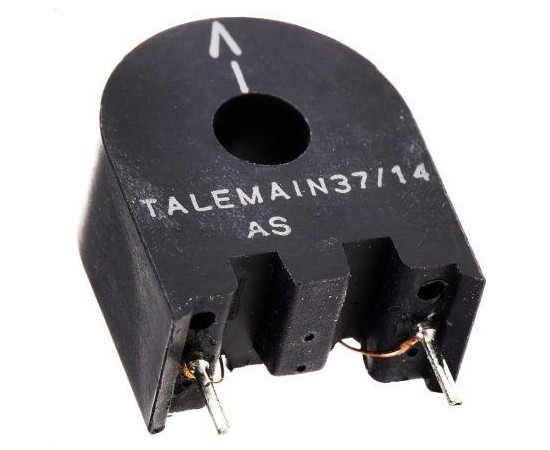

AS-104 TALEMA Sensor

Symbol Micros: TR P AS-104

27638

TR P AS-104

Contractor Symbol:

Case : Rys.AS

Datasheet

Technical drawing Add to favourites

High frequency current sensor; turns ratio 1:500; Lsec=700mH; DCR=25R max; Isec=30mA max; V=1500uS max

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	Talema
Series:	AS
Width:	17,2mm
Height:	17,0mm
Turns ratio:	1:500
Lenght:	9,53mm
Inductance:	700mH

All parameters

Manufacturer:: TALEMA Manufacturer part number: AS-104 RoHS Case style: Rys.AS Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,0483	1,7077	1,5127	1,4188	1,3647

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: TALEMA Manufacturer part number: AS-104 Case style: Rys.AS

External warehouse:

2375 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,3647

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Talema
Series:	AS
Width:	17,2mm
Height:	17,0mm
Turns ratio:	1:500
Lenght:	9,53mm
Inductance:	700mH
Operating temperature (range):	-40°C ~ 120°C
Resistance:	25 Ohm
Current:	0,03A
Volt uS:	1500V
