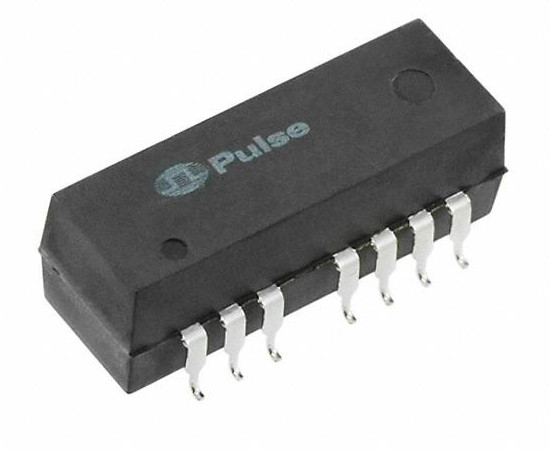

PE-68515LNL PULSE Signal transformer

Symbol Micros: TR PE-68515LNL PULSE

262075

TR PE-68515LNL PULSE

Contractor Symbol:

Case : Rys.PE-68515LNL

Datasheet

Technical drawing Add to favourites

Turns ratio: 1:1, frequency: 0.1MHz ~ 100MHz; SMD; dimensions: 25,4x13x8.9mm; operating temperature: 0~70°C; max.insertion loss: -1.6dB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	8,9mm
Width:	13mm
Lenght:	25,4mm
Manufacturer:	Pulse
Operating temperature (range):	0°C ~ 70°C
Mounting:	SMD

All parameters

Manufacturer:: PULSE Manufacturer part number: PE-68515LNL RoHS Case style: Rys.PE-68515LNL Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	3,4154	2,6684	2,3842	2,2362	2,2033

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Height:	8,9mm
Width:	13mm
Lenght:	25,4mm
Manufacturer:	Pulse
Operating temperature (range):	0°C ~ 70°C
Mounting:	SMD
