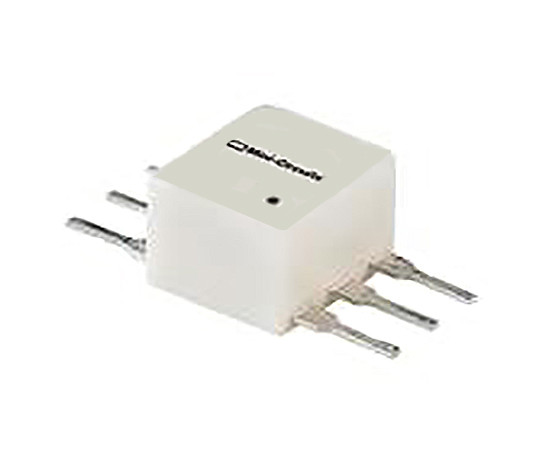

T9-1+ Mini-Circuits Transformer

Symbol Micros: TR T9-1+

410539

TR T9-1+

Contractor Symbol:

Case : Rys.T9-1+

Datasheet

Add to favourites

50R; SMD; 150 kHz to 200 MHz; 30 mA; dimensions: 7.62x6.86x5.84mm; operating temperature: -20°C~85°C

Parameters

Height:	5,84mm
Width:	6,86mm
Lenght:	7,62mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-20°C ~ 85°C
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	5,84mm
Width:	6,86mm
Lenght:	7,62mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-20°C ~ 85°C
Mounting:	SMD
