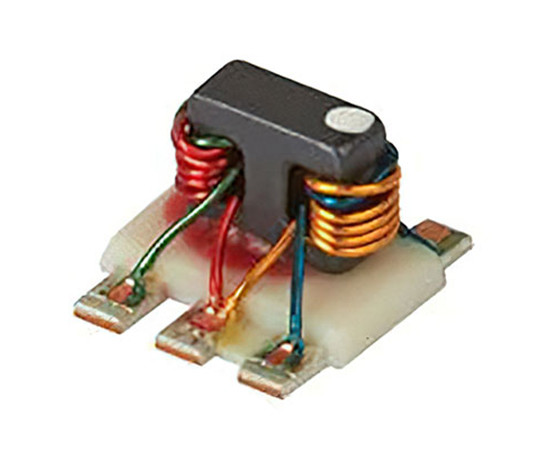

TCM9-1+ Mini-Circuits Transformer

Symbol Micros: TR TCM9-1+

410540

TR TCM9-1+

Contractor Symbol:

Case : Rys.TCM9-1+

Datasheet

Technical drawing Add to favourites

50R; SMD; 2 MHz to 280 MHz; 30 mA; 250 mW; dimensions: 4.06x3.81x4.06mm; operating temperature: -20°C~85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	4,06mm
Width:	3,81mm
Lenght:	4,06mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-20°C ~ 85°C
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	4,06mm
Width:	3,81mm
Lenght:	4,06mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-20°C ~ 85°C
Mounting:	SMD
