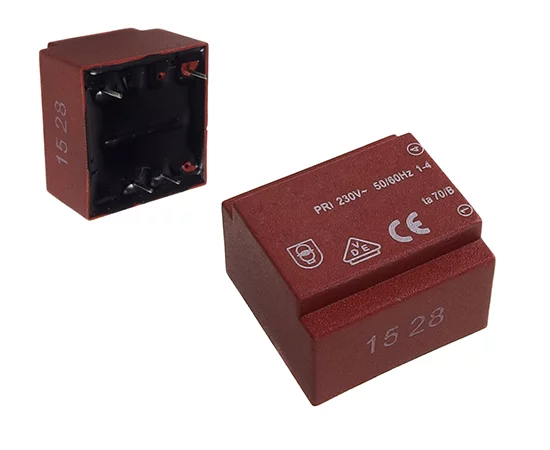

Encapsulated transformer; 0.35VA

Symbol Micros: TR Z00.35/2x24b II

112708

TR Z00.35/2x24b II

Contractor Symbol:

Case : Rys.TRZ00.352x24BII

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 0.35VA; 230V/2x24V; 2x7mA; Ta=70°C; H=16mm;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

VA power:	0,35VA
Input voltage:	230V
Secondary voltage 1:	24V
Secondary voltage 2:	24V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	0,35VA
Input voltage:	230V
Secondary voltage 1:	24V
Secondary voltage 2:	24V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	7mA
Secondary winding current 2:	7mA
