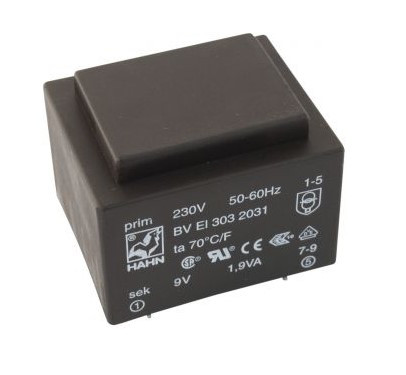

Encapsulated transformer; 1.9VA

Symbol Micros: TR Z01.90/09b Hahn

271048

TR Z01.90/09b Hahn

Contractor Symbol:

Case : Rys.TRZ15

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 1.9VA; 230V/9V; 211mA; Ta=70°C

Parameters

VA power:	1,9VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	1,9VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn
Secondary winding current 1:	211mA
